TIMathML[†]

MathML import/export for the TI-89/92+

Version 1.01

Author: Bhuvanesh Bhatt (bbhatt1@towson.edu)

Last updated: October 13, 2001











MathML v2.0 is a standard specification by the W3C for representing mathematical expressions. Members of the Math Working Group include Wolfram Research, Design Science, IBM, Adobe, Microsoft, and the American Mathematical Society. It is based on the popular XML, and has several advantages over traditional methods of mathematics communication:

·        It can be rendered in any web browser that has adequate stylesheet support. Currently, several vendors such as IBM and Design Science offer plug-ins to render MathML in web browsers, and both Internet Explorer and Netscape plan to support MathML.

·        Expressions and subexpressions can be copied and pasted (imported) into a computer algebra system such as Mathematica or the TI-89/92+ for evaluation, and the results can be posted back to the Web.

·        Voice synthesis software can use the semantics of MathML to render math expressions (math can be accessible to the visually impaired).

·        MathML can encode both presentation (notation) and content (semantic) information. Content MathML uses default notation.



This package currently does only export of TI-89/92+ expressions to content MathML, but I plan to add a program for importing MathML as well. Thanks to E.W. for his help with this program.





Usage:

1.      In the home screen, evaluate: MMLExp(expression-string[, textvar])
The textvar argument is optional.
For example: MMLExp("sin(x)+cos(x)") or MMLExp("x^2", "mathml\powtest")

2.      The program will write to the mathml\mmldata text variable (or the specified variable). The variable’s contents, if any, will be overwritten. Any errors will be shown in the text variable, and the last error will be shown in the status bar.

3.      Transfer the text variable to a computer via GraphLink (if the conversion was successful).

4.      Open the text variable in a text editor. On Windows, try Wordpad instead of Notepad for better line-break formatting.

5.      Delete the first three lines and the last line. What remains is the generated MathML. You can now embed it in XHTML code, keep it as a standalone MathML (.mml) file, or paste the part <math>…</math> into a computer algebra system like MathematicaÒ.



Format for standalone MathML file:

<?xml version="1.0"?>

<!DOCTYPE math PUBLIC "-//W3C//DTD MathML 2.0 //EN" "http://www.w3.org/TR/MathML2/dtd/mathml2.dtd">

<math xmlns="http://www.w3.org/1998/Math/MathML">

...

</math>



How to embed MathML into XHTML:

<?xml version="1.0"?>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.1 plus MathML 2.0//EN" "http://www.w3.org/TR/MathML2/dtd/xhtml-math11-f.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">

<body>

<p>

<math>...</math>

</p>

</body>

</html>



What’s New:

·        Added XML header information (DTD specification etc.)

·        Added an optional argument for specifying the text variable to use

·        Program now returns the name of the text variable if conversion was successful, and undef otherwise

·        Program no longer tries to open the text variable

·        Changed vector conversion so that column vectors are called <vector>

·        The <fn> tag has been deprecated, so it was removed

·        Added statistics tags

·        Added <inverse> tag for matrix-1

·        The floating point number 0.57721566490153 is translated to <eulergamma/>

·        Added <cn type=…> attributes

·        Variables containing Greek characters are now exported correctly (Unicode)



Major things remaining to be implemented:

·        Add <cn type="complex-cartesian"> attribute for complex numbers

·        Piecewise-defined functions (WHEN_TAG)

·        Trig tags that are not built-in (csc/sec/cot/csch/sech/coth and their inverses)

·        Hex and Bin (ExtTags) – for other (unsupported) ExtTags, maybe use error format TagsVal:ExtTagsVal

·        Generating MathML from a text variable, including both text and expressions (using control characters to distinguish them)

·        Build tag dictionary (may scrap it if it increases filesize)

·        Exporting presentation MathML (using “boxed RPN” information from AMS)

·        Importing content MathML



More examples:

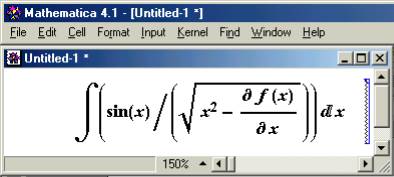

When pasted into MathematicaÒ 4.1, MathML looks like this:



Here is what MathML currently looks like in IBM’s techexplorerÒ:





Disclaimer and copyright:

This software product is provided as-is, with no warranties or claims of merchantability or fitness for a particular purpose. The author is not responsible for any damages to your calculator. The product may be freely distributed as long it is distributed as a whole, without any modification.



NOTICE: This product is not endorsed by Texas Instruments Incorporated.  The owner of the product is solely responsible and liable for any content or goods.  Texas Instruments Incorporated (“TI”) makes no representation with respect to the suitability of this product.  In no event shall TI or its licensees be liable for any damages whatsoever, including special, indirect or consequential damages, arising out of or in connection with the use of this product.



Mathematica is a trademark of Wolfram Research, Inc.

MathML is a trademark of the W3C.

techexplorer is a trademark of IBM Corporation.



Copyright Ó 2001 Bhuvanesh Bhatt.
